M52TU B20/25/28 into all RHD E36s [Saloon, Touring, Coupe, Vert, Compact]

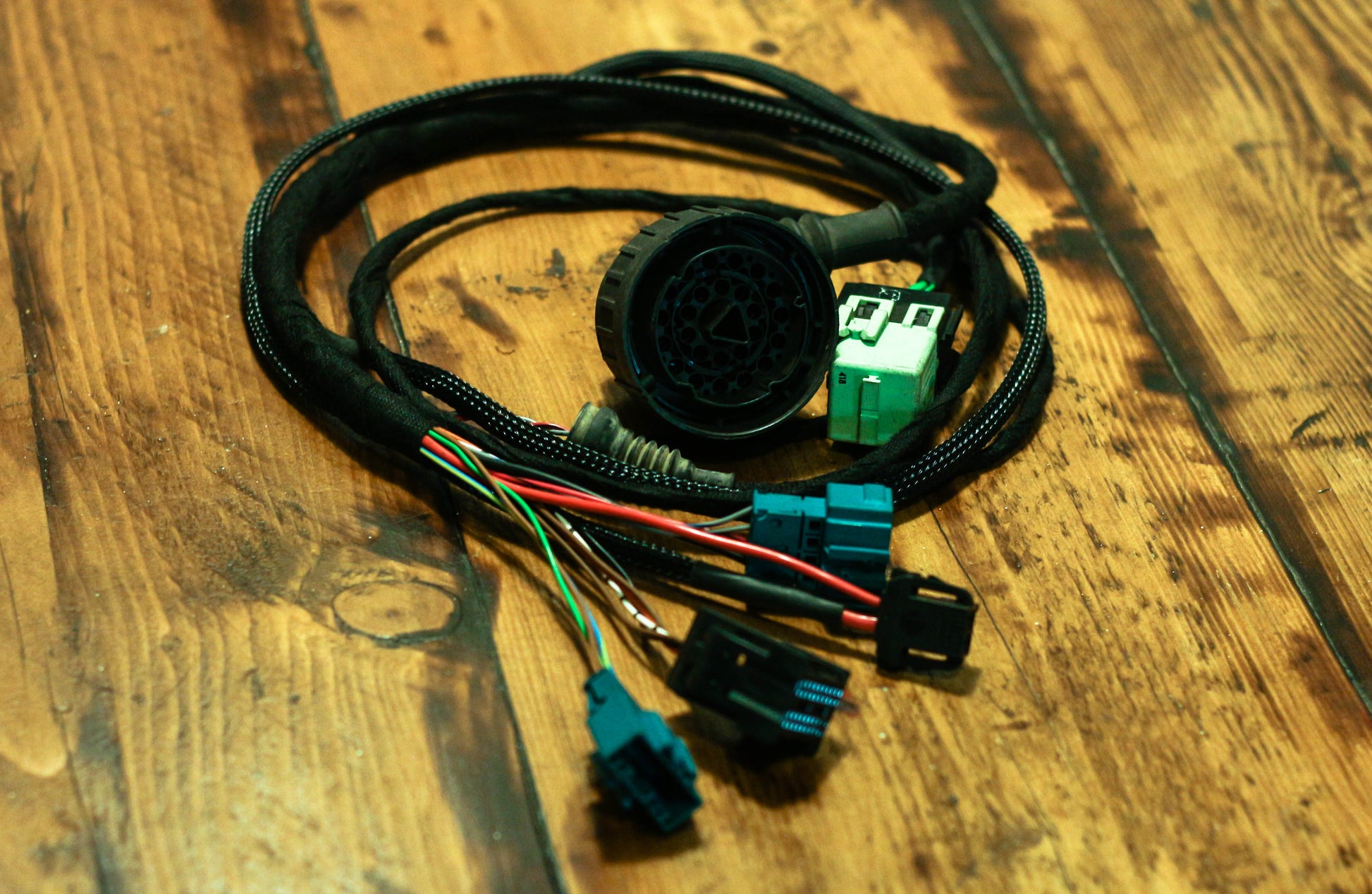

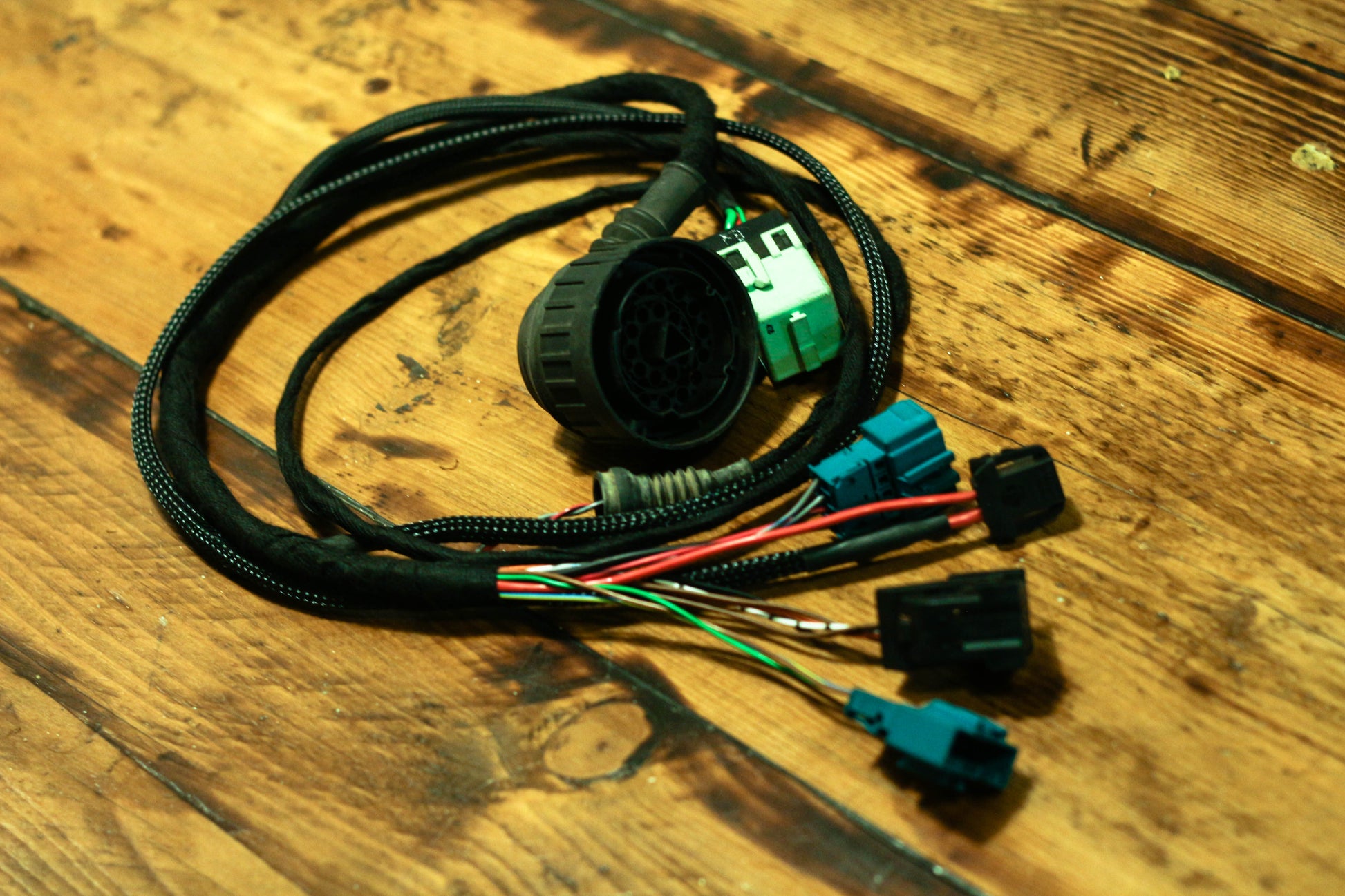

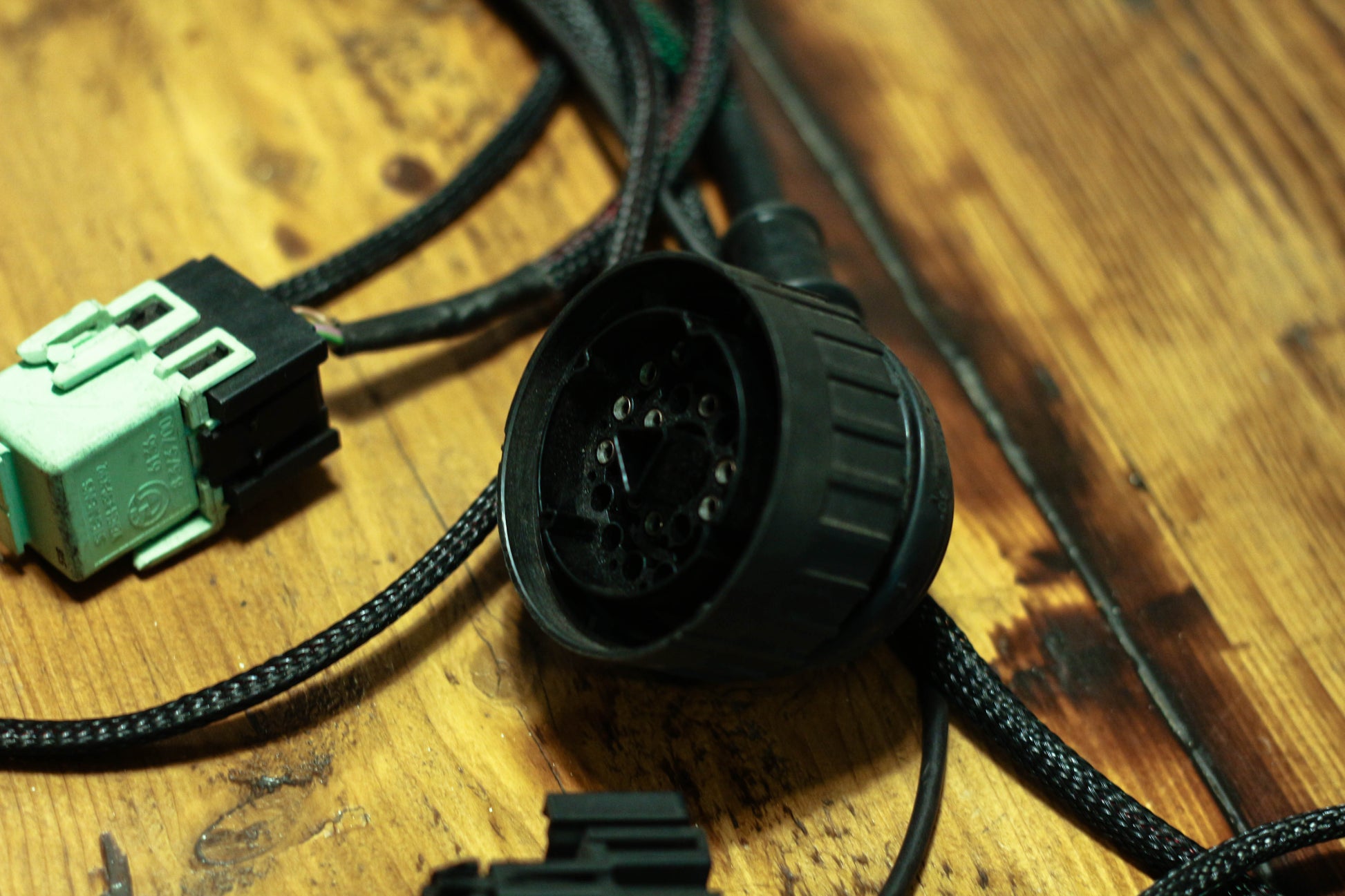

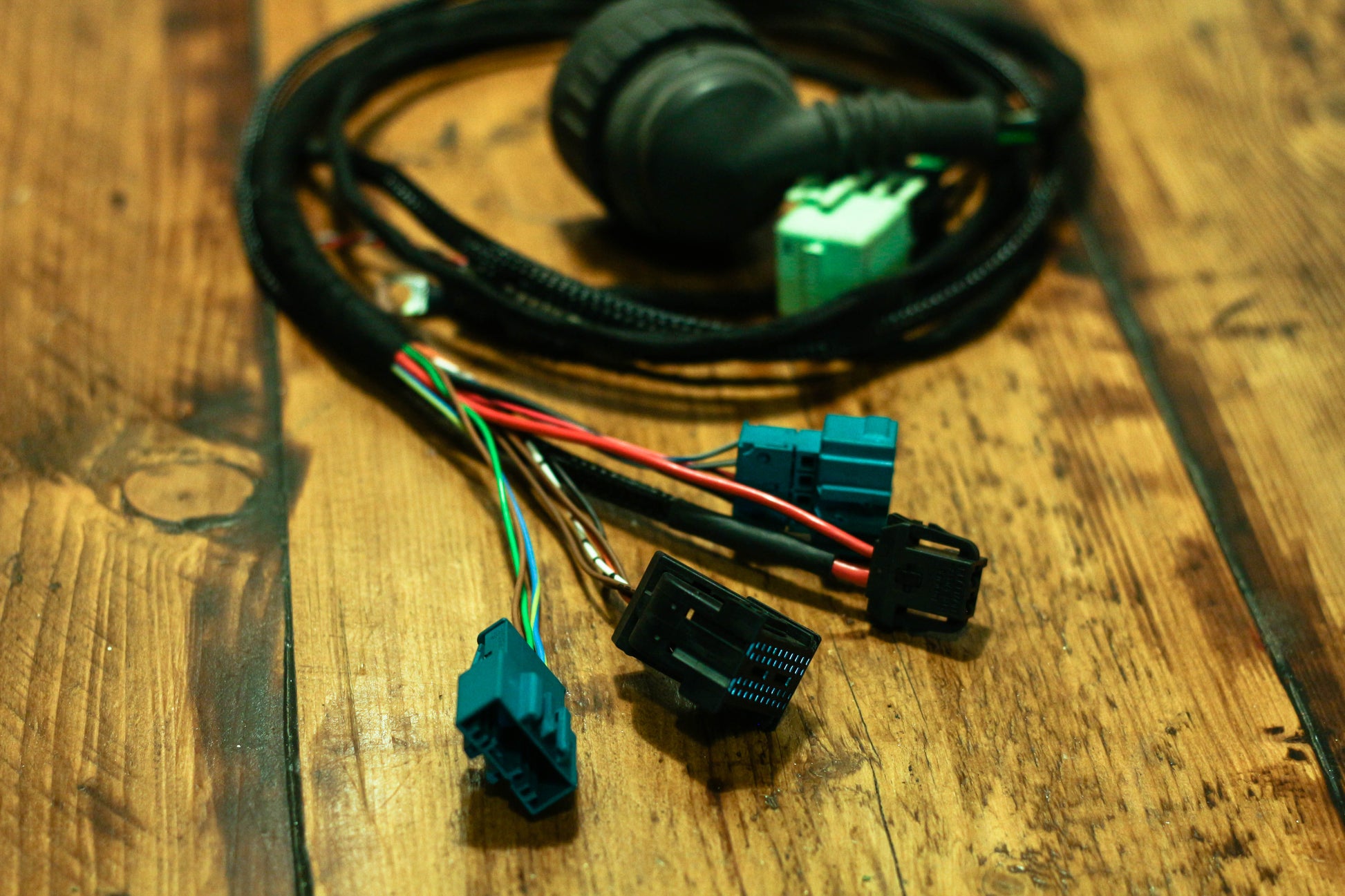

For swapping any M52TU engine into any E36, using all OE connectors and pins, it's a plug and play solution with no soldering required!
Standard looms are covered in 3m Fabric adhesive lined tape to give an OEM look.
Supplied with an OE style OBD port to be located under the drivers kick panel as it would be in an E46, on a quick disconnect plug so the cable can be routed through the firewall grommet.
For use with 4 pin coolant temperature sensor (back of the head beneath the inlet manifold) this will need to be swapped out from the original 2 pin - this is needed to retain an independent signal to the cluster and to the ECU for optimal running as the MS43 ECU is heavily reliant on this temperature signal. This can be brought through our website
