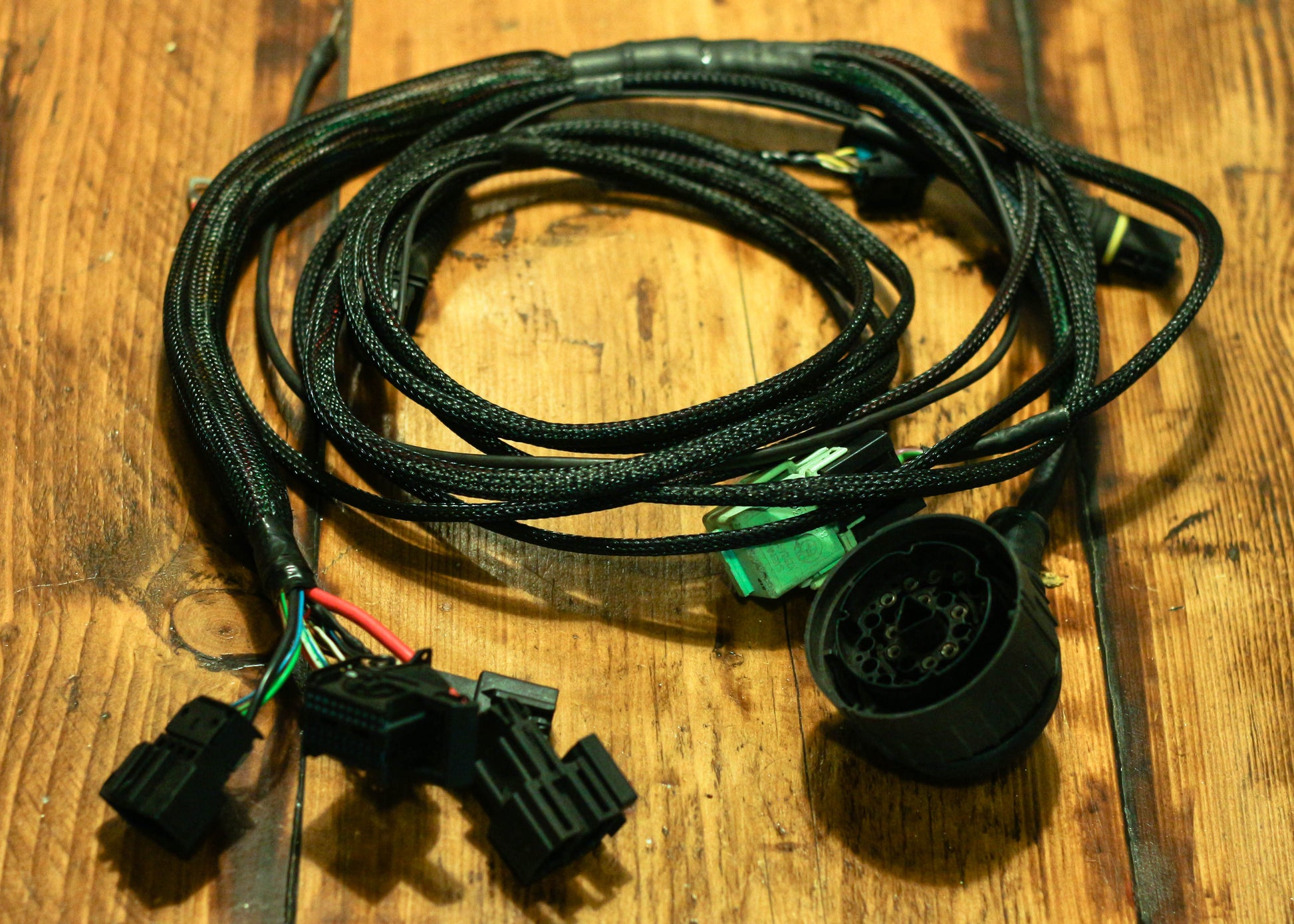

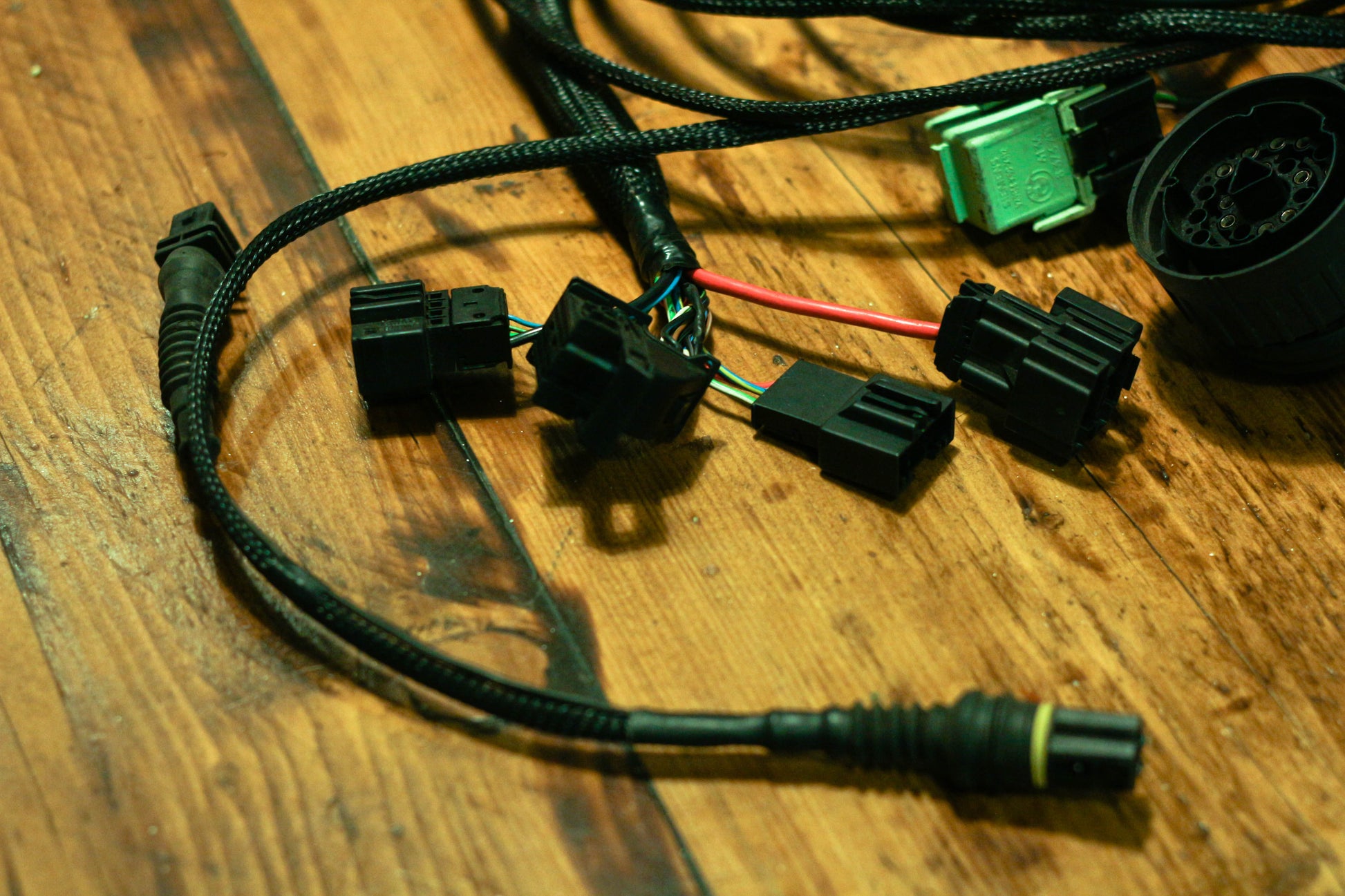

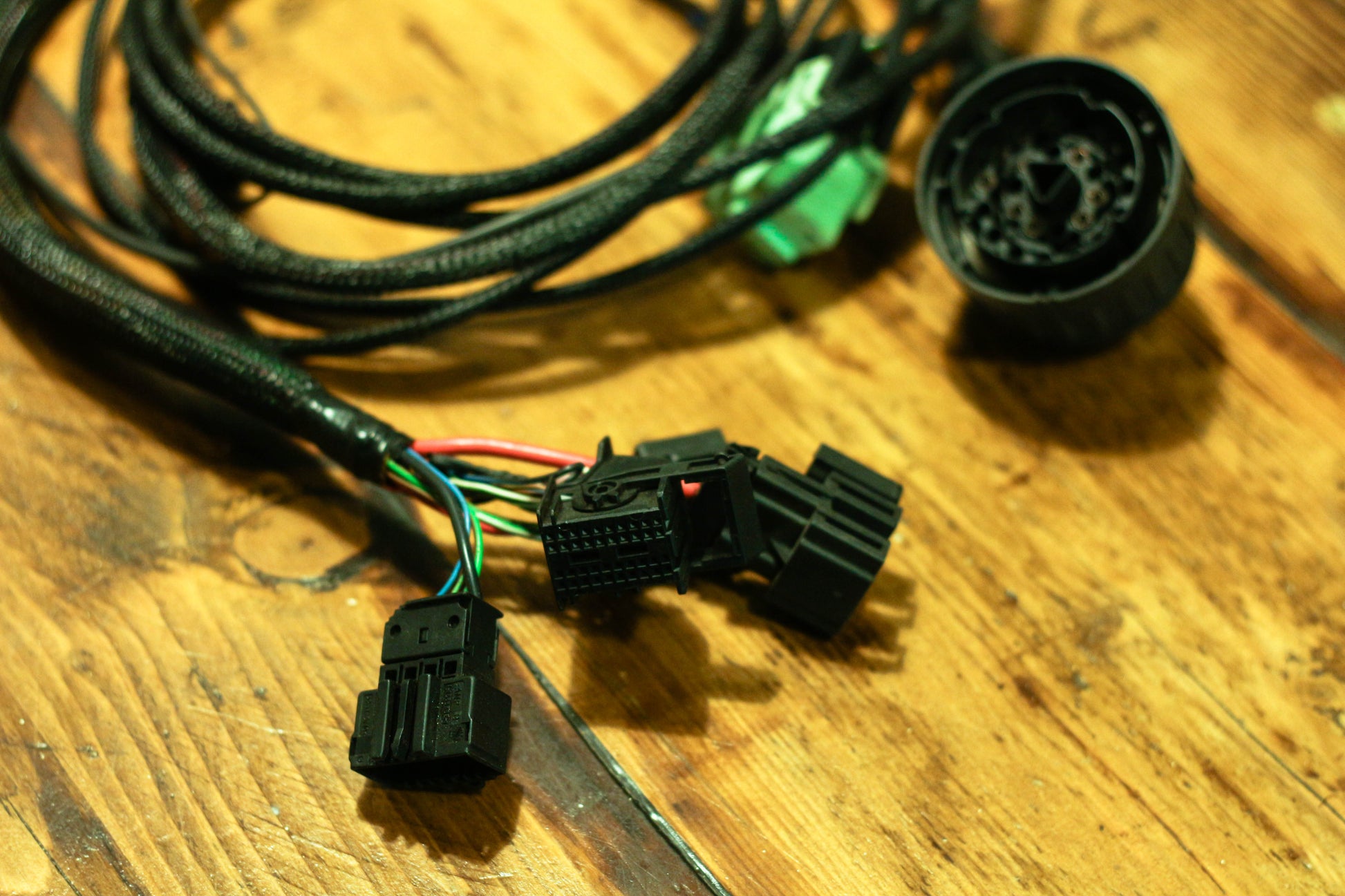

Conversion Harness - M54 to E36

M54B22/25/30 into all RHD E36s [Saloon, Touring, Coupe, Vert, Compact]

For swapping any M54 engine into any E36, using all OE connectors and pins, it's a plug and play solution with no soldering required!

Complete plug and play solution!

Standard looms are covered in 3m Fabric adhesive lined tape to give an OEM look.

A long enough length of cable on the Fly By Wire Throttle Pedal Cable to route it through the glove box side and across inside the cab or alternatively over the firewall and through the grommet behind the brake booster.

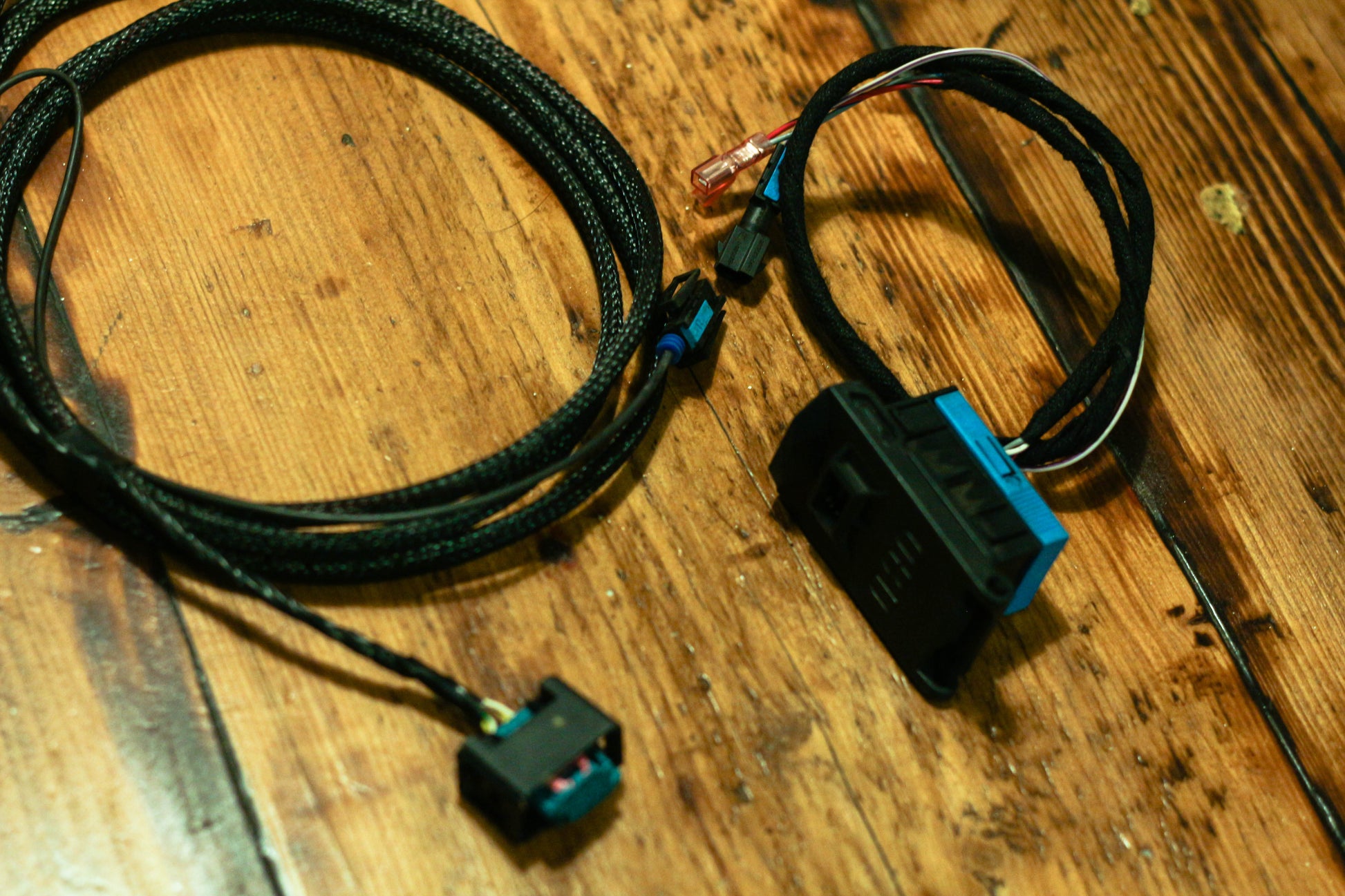

Supplied with an OE style OBD port to be located under the drivers kick panel as it would be in an E46, on a quick disconnect plug so the cable can be routed through the firewall grommet.

For use with 4 pin coolant temperature sensor (back of the head beneath the inlet manifold) this will need to be swapped out from the original 2 pin - this is needed to retain an independent signal to the cluster and to the ECU for optimal running as the MS43 ECU is heavily reliant on this temperature signal. This can be brought through our website

This loom requires a EWS deleted MS43 ECU. We can can also supply these so please contact us for this!
